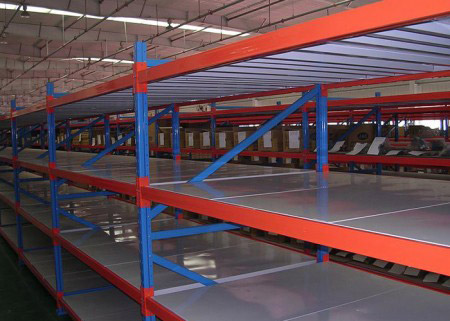

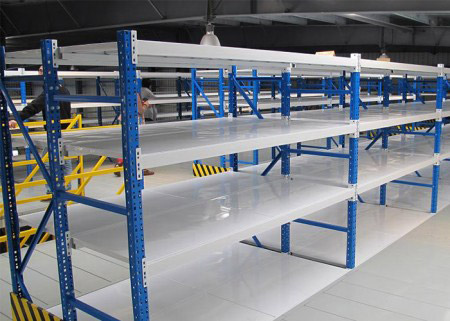

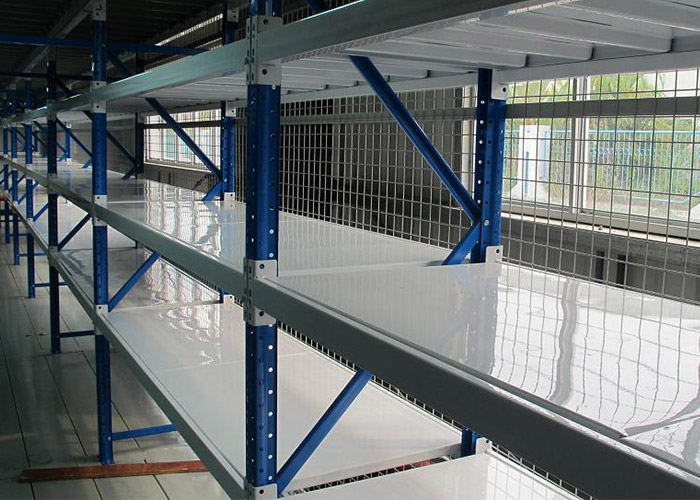

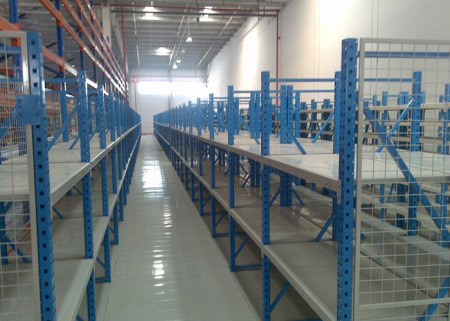

Medium Duty Longspan Shelving is the perfect solution no matter what you need to store from small components to heavy cartons. Our longspan system is easy to assemble and uses a modular design with bolt-free lock-in system which requires no special tools, giving you maximum storage in minutes whatever your available space. It is consisted of frames, beams and panel. The Long span shelving can be decked with particle board, wire decking, Zinc steel panel, rolling metal decking to make them ideal for many different environments. Long-span shelving are especially suitable for the hand loaded storage of bulky items. The loading capacity will be from 150kg to 500kg per level.
Features:
- Longer length shelving with a heavier weight loading
- Up to 1000kg weight loading per level
- A choice of 2 heights, 3 depths and 4 lengths to maximize your storage space
- All shelves or beams can be adjusted freely every 50mm
- Shelves or panels can be made from Wire Mesh or moisture-resistant steel board
- Consists of upright frames, beams and shelves
- Easily assembled in minutes
- Powder coated paint finish
- Extra shelves easily added
- Increase your storage space by adding extension unit
- Especially suitable for those small in size but large quantity products like retailing industry.
Designing factors:
- How high (1800mm or 2000mm) — most popular is 2000mm
- How long (1200, 1500, 1800, 2000 or 2400) — most popular is 1800mm or 2400mm
- How many levels (3, 4 or 5) — most popular is 4 levels
Product Specifications:
| Product Name | Long Span Racking |
| Standard Specification (Customized Available) |
W1500×D500×H1500mm W1500×D500×H2000mm |
| W1800×D500×H1800mm W1800×D500×H2000mm | |
| W2000×D600×H1800mm W2000×D600×H2000mm | |
| W2200×D600×H2000mm W2200×D600×H2200mm | |
| W2400×D700×H2200mm W2400×D700×H2400mm | |
| W2600×D800×H2400mm W2600×D800×H2600mm | |
| W2800×D900×H2600mm W2800×D900×H2800mm | |
| W3000×D1000×H2800mm W3000×D1000×H3000mm | |
| W3000×D1000×H3500mm W3000×D1000×H4000mm | |
| Rack Levels | 3 levels, 4 levels, 5 levels, 6 levels |
| Load Capacity per Level | 200KG, 300KG, 500KG, 700KG, 1000KG |
| Raw Material | High Quality Cold rolling steel |
| Material Thickness | 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm |
| Surface Treatment | deoil, derusting and powder coat paint finish |
| Rack Colors | standard blue, orange and customized available |
| HS Code | 7308900000 |
