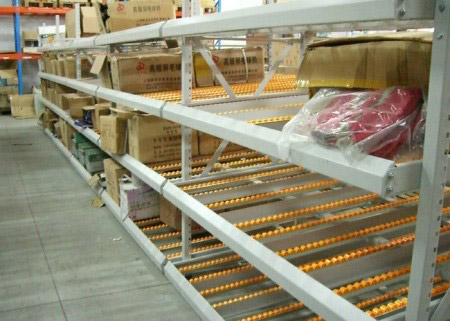

Warehouse Industrial Carton live Storage Racking Systems

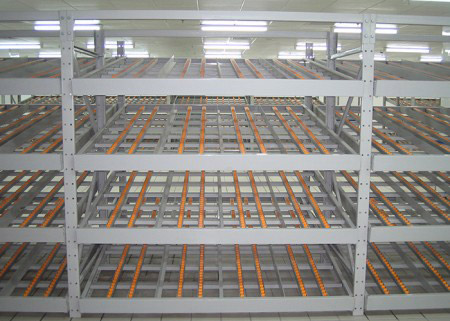

Warehouse Industrial Carton live Storage Racking Systems - Image 2
Warehouse Industrial Carton live Storage Racking Systems - Image 3

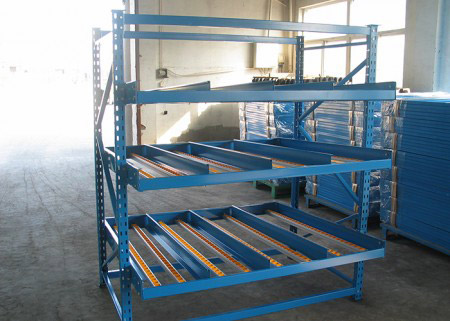

Warehouse Industrial Carton live Storage Racking Systems - Image 4
,

Warehouse Industrial Carton live Storage Racking Systems

ProGulf Shelving’s Carton live racking is evolved from medium duty rack. It transports goods from the distribution end to the picking end through the raceway, and the goods automatically slide down by gravity to achieve “first in, first out” operation. The use of cost is low,storage is fast and high density. It is usually used in the lean production process of a company.

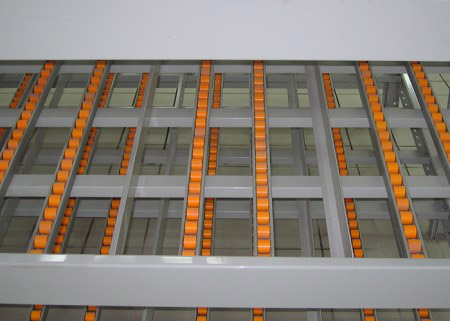

Carton live racking adopts a roller-type aluminum fluent strip, which is placed on a certain slope. The goods are usually paper-packed and the goods are placed in a plastic turnover box. The goods flow and the first-in-first-out are realized by using their own weight.

The goods are transported by the trolley,accessed by manual Conveniently. Unit rack load capacity per layer is usually around 100kg, height of rack is usually within 2.5 meters and the product is placed in a few grids.

carton flow rack

Features & Advantages:

  • First in first out system – provides automatic stock rotation
  • Dense form of storage – more economical
  • One dedicated loading face and one retrieval face – speed of operation in movement of goods around warehouse.
  • Loading capacity: 500-3000kg/layer
  • High storage density
  • passed ISO9001 and CE
  • Customized sizes are available
  • high storage density through providing higher floor area utility
  • Adopting gravity roller sliding support,no need of other driving devices,reducing cost effectively.
  • Parts: Uprights,boxbeams,horizontal and diagonl bracing,upright footplates,safety locking pins,bolts and achors. pulley

Product Specifications:

Product code Width1 Φ Width2 Width3 Height1 Height2 P Castor Material Loading capacity/meter
GF-1A-30 14 13 30 30 22 24 15/30/45 PE 40KG
GF-1B 14 13 70 70 14 16 15/30/45 PE
GF-2A-35 20 28 35 35 25 38 45 ABS PE 60KG
GF-2B-35 20 28 35 35 25 35 33 ABS 60KG
GF-3A-38 22 32 38 38 35 44 41 ABS PE 70KG
GF-4A-40 22.5 32 40 40 33 45.5 36 ABS PE 100KG
GF-4B-40 22.5 38 40 40 33 48.5 45 ABS PE 100KG
GF-4C-40 24 33 40 40 35 42.5 36 ABS PE 100KG
GF-4D-40 24 33 40 40 35 42.5 39 ABS PE 100KG
GF-4E-40 24 33 40 40 35 42.5 39 ABS PE 70KG
GF-4F-40 22 34 40 40 35 43 38 ABS PE 80KG
GF-4G-40 34 24 51 40 40 36 54 52 ABS PE 100KG
GF-5A-41 24 28 41 29 26 38 33/35/45 ABS PE 45KG
GF-6A-42 25 28 42 42 35 38.5 30/45/60 ABS PE 80KG
GF-6B-42 25 28 42 42 35 42.5 30/45/60 ABS PE 80KG
GF-7A-44 24 38 44 44 33 36 44 45 ABS PE 80KG
GF-7B-44 24 38 44 44 33 44 46 45 ABS PE 80KG
GF-7C-44 24 38 44 44 38 41 48 45 ABS PE 80KG
GF-7D-44 25 38 51 48 43 87 41 ABS
GF-7E-44 25 38 44 44 33 54 44 54 44 ABS 80KG
GF-8A-60 42 30 60 60 33 44 36 ABS PE 300KG
GF-8B-60 42 15 60 60 25 30 16 ABS PE 500KG
GF-9A-72 54 34 72 72 35 42 41 ABS PE 200KG
GF-9B-72 54 34 72 72 36 44 42 ABS PE 400KG
GF-9C-72 55 15 72 72 38 50 42 ABS PE 500KG
GF-10A-85 54 45 85 85 33 50 50 PE 800KG
GF-11A 16 48.5 40 40 33 53 45 galvanized iron 800KG
GF-11B 14.2 49.2 28 43 44 61 50 galvanized iron 800KG
GF-11C 16 48 47 47 38 50 45/50/75 polyformaldehyde 800KG
GF-12A 38 48 49 49 42 55 45/50/75 polyformaldehyde 800KG
GF-12B 17 51 40 40 33 53 66 polyformaldehyde 100KG

Packaging & Shipping:

Gulf Shelving pay great attention to export package ,which aims at protecting our goods from being damaged during transportation, loading or unloading.Our packs can use forklift to unload the container easily and such can be able to greatly save labour cost.

racking packing

Product pictures:

Carton-flow-rack
