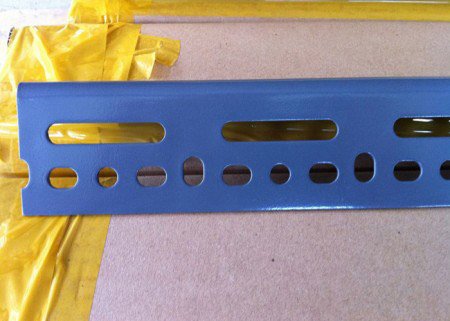

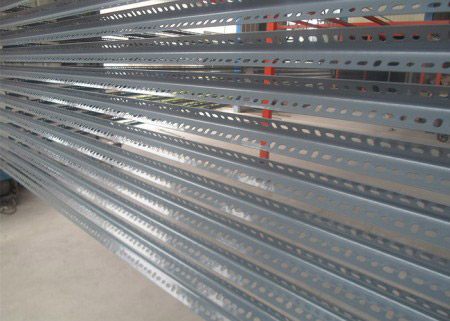

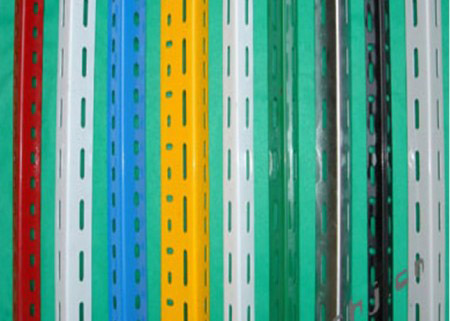

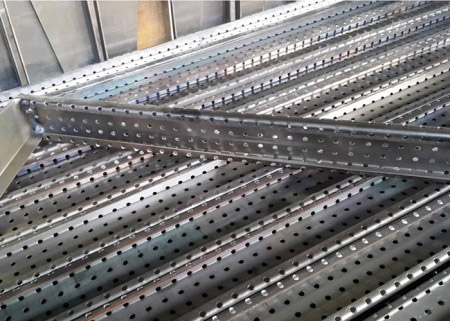

Gulf Shelving slotted angle racking system is an all-purpose framing system, roll formed from high strength steel strips. It is designed to be used as
economical shelving, racks or electrical and mechanical supports. The unique pattern of horizontal and vertical slots permits
full flexibility. Three basic sizes are available for light, medium, and heavy duty applications.
Features:
• 120kg per level
• Size:1829mm/ 2134mm/ 2438mm/ 2843mm
• popular sizes: 914mm*305/ 381mm/ 457mm/ 610mm*0.8mm
• Closed back & sides + dividers are available on request
• Easy assembly & Installed quickly
• Economic solution for a wide range of uses.
Slotted Angle Beam Loading & Combinations
Beam Sections:
Column Sections:
Product Specifications:
| Product name | SPEC (mm) | Thickness (mm) | Length | Capacity (lbs) | Picture |
| Angle post (Equilateral) | 35*35 36*36 37*37 38*38 40*40 | 1.5-2.0 | H24”-144” | 1000-3000 |  |
| Angle post (Inequilateral) | 60*40 57*37 | 1.5-2.0 | H60”-192” | 1500-3500 | |
| Shelves (without supporter) | 900*300/400/450/600 | 0.7-1.0 | 100-200 | ||
| Shelves (with supporter) | 900*300/400/450/600 | 0.7-1.0 | 150-350 | ||
| Corner plate | 70*70 | 0.7 | |||
| Bolts &nuts | M8*16 | ||||
| Base plate |
