Slotted angle shelving basic information:
- Material :High grad of cold rolled steel
- Finish: deoiling –phosphating –plastic spraying
- Loading capability: 80-150kg/layer
- 3,4,5,6 layers is available, and the layer height could be adjustable by free.
- Different dimension, weight capability are available for us
- widely used in electrical,medicine,supermarket
Slotted angle shelving advantages:
- Cut-in composite beam structure, easy to install and disassemble
- Height of each layer can be adjusted freely for convenient storage
- Load capacity usually between 80-150kg per level
- Connection of main and subsidiary frames for saving space and costs
- Enables efficient storage of a wide range of goods
- It can be used single or connected one by one freely
Ps: Light duty slotted angle shelving non-standard specifications available, if you have special requirements, pls contact me, it can be design as per your needs.
Slotted angle shelving each parts technical parameters for reference:
| Product name | SPEC (mm) | Thickness (mm) | Length | Capacity (lbs) | Picture |
| Angle post (Equilateral) | 35*35 36*36 37*37 38*38 40*40 | 1.5-2.0 | H24”-144” | 1000-3000 |  |
| Angle post (Inequilateral) | 60*40 57*37 | 1.5-2.0 | H60”-192” | 1500-3500 | |
| Shelves (without supporter) | 900*300/400/450/600 | 0.7-1.0 | 100-200 | ||
| Shelves (with supporter) | 900*300/400/450/600 | 0.7-1.0 | 150-350 | ||
| Corner plate | 70*70 | 0.7 | |||
| Bolts &nuts | M8*16 | ||||
| Base plate |

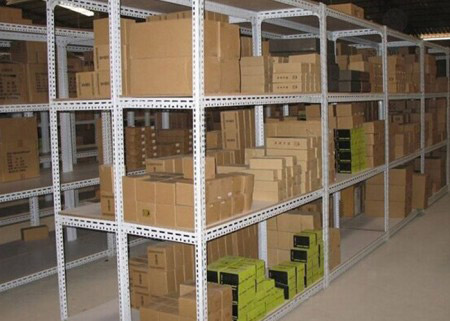

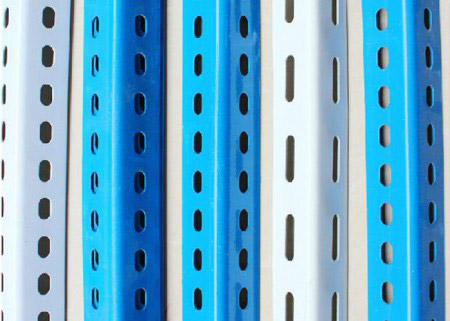

Product pictures
Packaging & Shipping:
