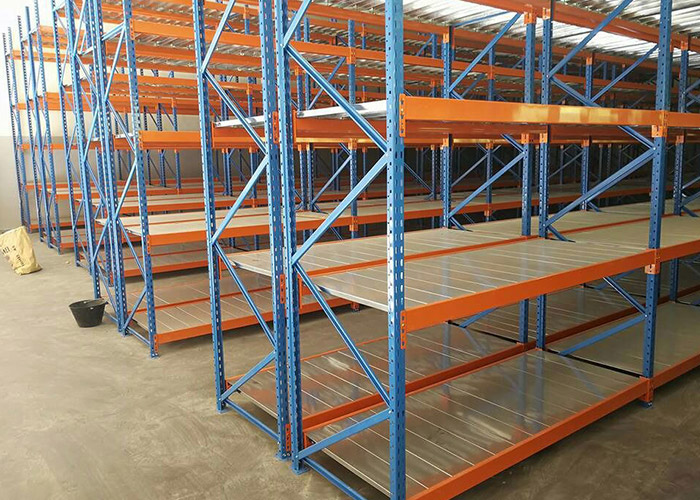

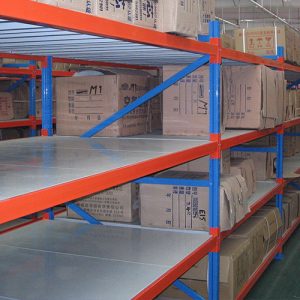

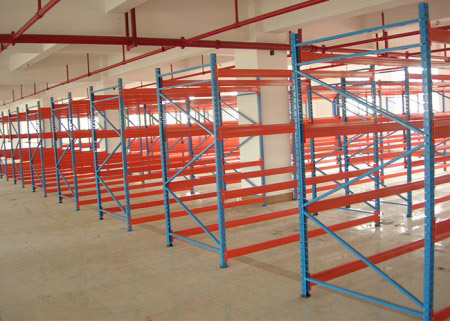

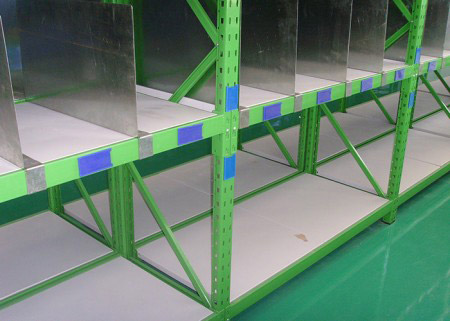

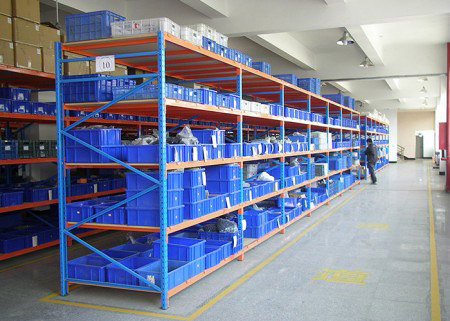

Long Span Shelving has the capability of easily storing smaller items, within easy reach of warehouse personnel, for easy picking of boxed stock.
Numerous size and shelving configurations can be included in your warehouse storage facility. Easily added to or adjusted as a business grows, the Long Span System is highly versatile with exceptional weight loading capacity.
Features:
- Cut-in composite structure, standard cut-in units
- Simple and quick installation and disassembly
- Ultra high-strength steel panel by continuous punching and rolling
- Panel width can be composed freely
- There is groove in the front of the panel for cut-in tags
- Space for each layer can be separated freely
- The height of each layer can be adjusted by pitch 50mm freely
Product Specifications:
| Product Name | Long Span Racking |
| Standard Specification (Customized Available) |
W1500×D500×H1500mm W1500×D500×H2000mm |
| W1800×D500×H1800mm W1800×D500×H2000mm | |
| W2000×D600×H1800mm W2000×D600×H2000mm | |
| W2200×D600×H2000mm W2200×D600×H2200mm | |
| W2400×D700×H2200mm W2400×D700×H2400mm | |
| W2600×D800×H2400mm W2600×D800×H2600mm | |
| W2800×D900×H2600mm W2800×D900×H2800mm | |
| W3000×D1000×H2800mm W3000×D1000×H3000mm | |
| W3000×D1000×H3500mm W3000×D1000×H4000mm | |
| Rack Levels | 3 levels, 4 levels, 5 levels, 6 levels |
| Load Capacity per Level | 200KG, 300KG, 500KG, 700KG, 1000KG |
| Raw Material | high quality cold rolling steel. |
| Material Thickness | 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm |
| Surface Treatment | deoil, derusting and powder coat paint finish |
| Rack Colors | standard blue, orange and customized available |
| HS Code | 7308900000 |
All of our products can be customized, so don’t hesitate to tell us if the specifications above can not meet your requirements.
