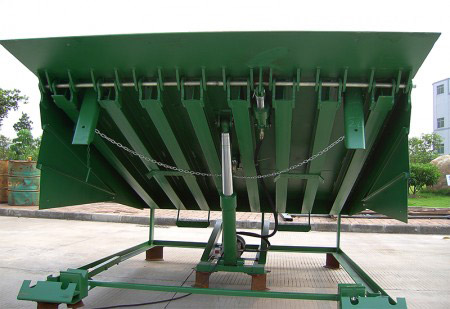

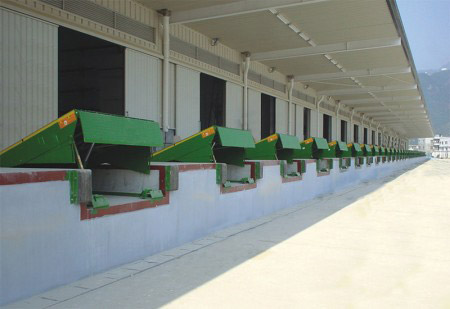

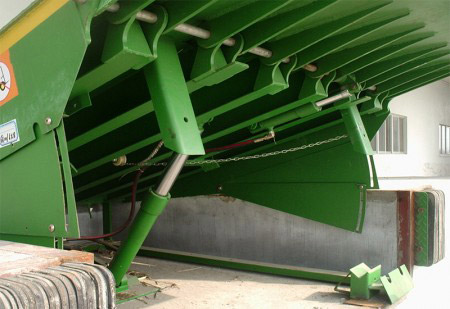

Heavy duty hydraulic dock leveler for warehouse
Heavy duty hydraulic dock leveler for warehouse - Image 2
Heavy duty hydraulic dock leveler for warehouse - Image 3
Heavy duty hydraulic dock leveler for warehouse - Image 4
,

Heavy duty hydraulic dock leveler for warehouse

We supply mechanical dock leveler, air-powered dock leveler,hydraulic dock leveler and edge dock leveler. Each dock leveler combines the highest quality design, materials and manufacturing to meet customer requirements and dock safety regulations.

For many years,-Equipment within  Group has been suppplying the logistics industry with high quality and low price products. Our dock levelers and tailgate lifts are very popular in North America, Australia, Europe and other areas. Thanks to decade’s experience in supporting logistics industry around the world, our experienced team know the customers’ requirments when it comes to quality and price.hydraulic-dock-leveller

Features & Advantages:

  • Completely hydraulic drive,convenient operation and reliable funcation.
  • Platform and lip board adopt hinges with long axis,high intensity,fine credibility.
  • High instensity“U-shaped”grider guarantees that high load function doesn‘t distort after long-playing r unning.
  • Adpt non-slipping expanded steel board to make platform has good antiskid performance

Product Components:

01-hydraulic-dock-leveller 02-hydraulic-dock-leveller 03-hydraulic-dock-leveller1 04-hydraulic-dock-leveller 05-hydraulic-dock-leveller
Hydraulic lift:Hydraulic system adopting imported Italian originalproduct with super performance and ensured quality Open mobile joint:Special “streamline” open mobile joint design,increasing welding position by 270% than tub jointwith longer utilizing life and easy maintenance. Lift cylinder:Durable lip cylinder make sure the function of the lip Strong leveler support:Automatic retracting structural steel dock levelsupport legs for full,unrestricted working range Toeguard:Full operation Toeguard insure safety

Product Specifications:

Dock Leveler:

Item NO. MaxLoad Power System Size (feet) Lip length Adjusting range(mm) Pcs/20′ Pcs/40HQ
AL-L66 22000 lb Hydraulic/Mechanical/Airbag 6×6 406mm +/-300 12 24
AL-L656 22000 lb Hydraulic/Mechanical/Airbag 6.5×6 406mm +/-300 12 24
AL-L76 22000 lb Hydraulic/Mechanical/Airbag 7×6 406mm +/-300 12 24
AL-L68 22000 lb Hydraulic/Mechanical/Airbag 6×8 406mm +/-300 8 20
AL-L658 22000 lb Hydraulic/Mechanical/Airbag 6.5×8 406mm +/-300 8 20
AL-L78 22000 lb Hydraulic/Mechanical/Airbag 7×8 406mm +/-300 8 20
AL-L610 22000 lb Hydraulic/Airbag 6×10 406mm +450/-300 8 16
AL-L6510 22000 lb Hydraulic/Airbag 6.5×10 406mm +450/-300 8 16
AL-L710 22000 lb Hydraulic/Airbag 7×10 406mm +450/-300 8 16
AL-M66 33000 lb Hydraulic/Airbag 6×6 406mm +/-300 12 24
AL-M656 33000 lb Hydraulic/Airbag 6.5×6 406mm +/-300 12 24
AL-M76 33000 lb Hydraulic/Airbag 7×6 406mm +/-300 12 24
AL-M68 33000 lb Hydraulic/Airbag 6×8 406mm +/-300 8 20
AL-M658 33000 lb Hydraulic/Airbag 6.5×8 406mm +/-300 8 20
AL-M78 33000 lb Hydraulic/Airbag 7×8 406mm +/-300 8 20
AL-M610 33000 lb Hydraulic/Airbag 6×10 406mm +450/-300 8 16
AL-M6510 33000 lb Hydraulic/Airbag 6.5×10 406mm +450/-300 8 16
AL-M710 33000 lb Hydraulic/Airbag 7×10 406mm +450/-300 8 16

Moveable Leveler :

Item No. Max Load Power system Size (m) Lip length Adjusting range Pcs/20′ Pcs/40HQ
AL-M10A 22000 Hydraulic 2x11x1.2 500mm +450 N/A 2pcs
AL-M10B 22000 Mechanical 2x11x1 300mm +700 N/A 3pcs
 AL-M6 13000 Mechanical 2x10x1 300mm +700 N/A 3pcs

Edge leveler:

Item No. Max Load Power system Width Lip length Adjusting range Pcs/20′ Pcs/40HQ
AL-D656 12000 Mechanic 1830 mm 406 +/-300 N/A N/A



Process equipment：

01-dock-leveller-equipment 02-dock-leveller-equipment 03-dock-leveller-equipment 04-dock-leveller-equipment

Product Category：

01-dock-leveller 03-dock-leveller 02-dock-levelle 04-dock-leveller
Mechanical Dock Leveller Hydraulic Dock Leveller Air-Powered Dock Leveler Edge Dock Leveler
