Gondola supermarket shelving for retail shop

Description

Supermarket shelving system allows us to quickly develop display-furniture solutions from our component-based system, providing flexibility to tailor to a wide range of needs from commercial to supermarket furniture. Our modular fixture and accessory designs are proven, providing a unique spectrum of solutions with faster lead times to serve you better. We design solutions that balance functionality, flexibility and creativity for maximum return on investment. Our component-based system has been developed to different product series target to supermarket applications. SM005

Product Accessories:

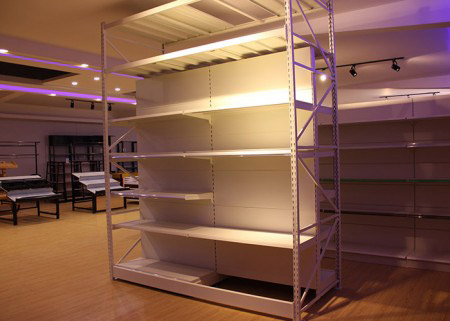

01-supermarket shelving 02-supermarket shelving

Product Specifications:

Euro style:

Basic shelving components	Size	options(mm)
Upright	Section size	30×30/ 30×60/ 30×80/ 30×110
	Lenght/	1410/1510/1610/1710/1810/1910/2010/2110/2210/2310/2410/

		2510/2610/2710/2810/2910/3010
	Thickness/	2.0/ 2.5
Base leg	Length	200/250/300/370/470/570/670/770
Base leg	Height	60/110/160/260
Shelf	Width	665/800/1000/1250/1330
	Depth	200/250/300/370/470/570/670/770
	Thickness	0.7/0.8
Wire shelf	Width	665/1000/1250/1330
	Depth	370/470/570
	Dia	2.8
Preforated backpanel	Width	665/800/1000/1250/1330
	Height	400/500
	Thickness	1.0/1.2
Back panel	Width	665/800/1000/1250/1330
	Height	100/200/300/400/500
	Thickness	0.6/0.7
Bracket	Hook number	2/3/4
	Length	200/250/300/ 370/470/570/670/770
	Thickness	2.5/3

American style:

Basic shelving components	Size	options
Upright	height	30” thru 120” in 6” (152 mm) incremnets
Kicker plate	Length	2′ to 4′ in 6” increments
Top/bottom spanner	Width	3′ or 4′
Hardboard Backs	height	6″, 12″, 18″, 24″, 30″, 36″, 42″, 48″, 54″, 60″, 66″, 72″
	height	6″, 12″, 18″, 24″, 30″, 36″, 42″, 48″, 54″, 60″, 66″, 72″
(Pegboard and Marteck)	Length	2′ to 4′ in 6” increments
Shelf	Width	2′ to 4′ in 6” increments
	Depth	7”-31”
	Angular adjustment	flat, 17° or 30° downslope positions
Base Shelf	Width	2′ to 4′ in 6” increments
Base Shelf	Depth	7”-31”
Wire shelf	Width	2′ to 4′ in 6” increments
	Depth	7”-31”
	Angular adjustment	flat, 17° or 30° downslope positions

Australian style:

Basic shelving components	Size	options(mm)
Upright(single side)	Depth	200/250/300/320/350/400/450/500
	Height/	1200/1500/1800/2100/2400
	Thickness/	1.5/ 2.0
Shelf	Width	600/630/900/930/1200/1230
	Depth	200/250/300/320/350/400/450/500
	Thickness	0.5/0.6/0.7/0.8/0.9/1.0
Wire shelf	Width	600/630/900/930/1200/1230
	Depth	335/405
	Dia	2.7
Preforated backpanel	Width	600/630/900/930/1200/1230
	Height	100/300
	Thickness	0.7/0.8/0.9/1.0/1.2
Back panel	Width	600/630/900/930/1200/1230
	Height	100/300
	Thickness	0.6/0.7/0.8/0.9
Volcano back panel	Width	600/630/900/930/1200/1230
	Height	100/300
	Thickness	0.8/0.9/1.0
Mesh back	Height	1200/1500/1800/2100/2400
Mesh back	Width	600/630/900/930/1200/1230
Bracket	Hook number	2/3/
	Length	250/300/ 320/350/400/450/500
	Thickness	2.0/2.5/3
Rear/ front beam	Length	600/630/900/930/1200/1230
Wire fence	Length	600/630/900/930/1200/1230

Asia style:

Basic shelving components	Size	options
Upright	Section	30602.0mm; 30802.2mm;
Upright	height	1350;1550;1850;2150;2550mm
Kicker plate	Length	500; 650;700;800;900;1000;1100;1200;1300mm
Flat back panel	height	300mm; 150mm
Flat back panel	Length	500; 650;700;800;900;1000;1100;1200;1300mm
Pegboard panel	height	300mm; 150mm
	Length	500; 650;700;800;900;1000;1100;1200;1300mm
	Thickness	0.5; 1.2mm
Shelf	Width	500; 650;700;800;900;1000;1100;1200;1300mm
	Depth	200; 300;350;400;450;500;550;600mm
	Angular adjustment	flat, 17° or 30° downslope positions
Base Shelf	Width	2′ to 4′ in 6” increments
Base Shelf	Depth	7”-31”
Bracket	Length	200; 300;350;400;450;500;550;600mm
Bracket	Thickness	2.5; 3mm
