Foldable Heavy Duty Wire Steel Mesh Container

Gulf Shelving can supply standard storage cages, also European storage cages and United States storage cages. We have variety of models and sizes available (rolling wire mesh container)for customers to choose, OEM & ODM acceptable.

Features of Wire Mesh Containers:

  • Clear view of product inside container
  • Open wire mesh design
  • Long service life
  • Recyclable
  • Stackable & collapsible for space saving
  • Lightweight or heavyweight option
  • Optional dividers for multiple products
  • Optional security lid for products in storage or transit
  • Optional casters

Main features of wire mesh pallet cage:

  • 1. Surface treatment:  Zinc plated
  • 2. Available in 5 to 14mm galvanized welded mesh
  • 3. Legs are wrapped and welded around the based-no edges to scratch floors or people
  • 4. Double wire reinforcements at load-bearing surface and top edges
  • 5. Base inside walls protect content from damage
  • 6. Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness
  • 7. Good appearance and cleanness
  • 8. Adapts patented technology, with new pattern and unique design, Can also design and produce commercial storage equipment of various    specifications according to customer’s requirements
  • 9. Offers overall arrangement for all kinds of markets and warehouses

Product detail show:

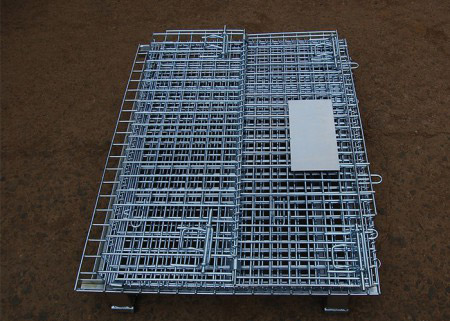

wire mesh cage

Optional accessories:

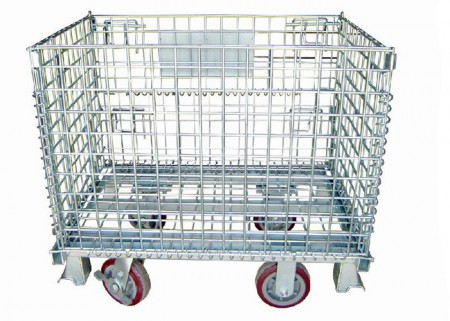

Wire mesh container2

European style wire mesh pallet cage:

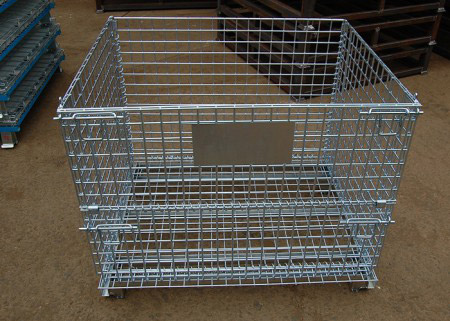

EU wire container

Wire mesh pallet cage specs:

Length(mm) Width(mm) Height (mm) Capacity (kg) Volume (m³) Wire dia.(mm) Leg height(mm) Mesh grid (mm)
800 600 650 700 0.22 6 100 50*50
800 600 650 500 0.22 6 100 50*100
1000 800 850 1200 0.51 6 100 50*50
1000 800 850 800 0.51 6 100 50*100
1200 1000 900 1500 0.84 6 100 50*50
1200 1000 900 800 0.84 6 100 50*100
800 600 650 800 0.22 6.4 100 50*50
800 600 650 600 0.22 6.4 100 50*100
1000 800 850 1500 0.51 6.4 100 50*50
1000 800 850 1000 0.51 6.4 100 50*100
1200 1000 900 2000 0.84 6.4 100 50*50
1200 1000 900 1000 0.84 6.4 100 50*100

CAD layouts for your reference:

wire container drawing

Product pictures

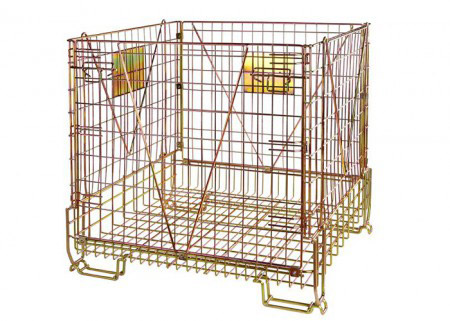

Wire container
